Description

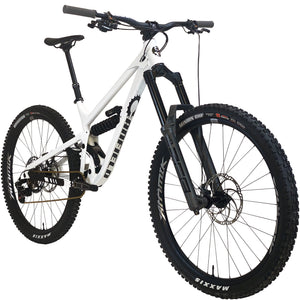

on one mountainbike Canfield ONE.229" WHEELS 190MM REAR 190MM FRONT The anti gravity gravity machine. Introducing the ONE. 2, the first CBF super enduro freeride bike from the fun junkies at Canfield. Built around 29 inch wheels and the patented Canfield Balance Formulasuspension platform, the ONE. 2 is a super enduro weapon engineered to take on the roughest race tracks and biggest bike park lines with confidence. And thanks to the ultra efficient CBF tuned linkage, it pedals like
29" WHEELS // 190MM REAR // 190MM FRONT
The anti-gravity gravity machine. Introducing the ONE.2, the first CBF™ super enduro/freeride bike from the fun junkies at Canfield. Built around 29-inch wheels and the patented Canfield Balance Formula™suspension platform, the ONE.2 is a super enduro weapon engineered to take on the roughest race tracks and biggest bike-park lines with confidence. And thanks to the ultra-efficient CBF™ tuned linkage, it pedals like nothing with 8 inches of travel should, to ensure nothing is wasted, whether you’re sprinting across the finish line or into the next jump.
BUILD SPECS
| PRO | |
|
Fork |
RockShox Zeb Ultimate Charger RC3 190mm |
|
Shock |
RockShox Vivid Coil 250 x 70 |
|
Cranks |
SRAM XO1 DH or Canfield DH Cranks |
|
Chainring |
e*thirteen 32t Round |
|
Shifter |
SRAM GX 12 speed |
|
Derailleur |
SRAM GX 12 speed |
|
Cassette |
e*thirteen Helix-R 12-speed |
|
Brakes |
TRP DH-R Evo |
|
Rotors |
TRP 203mm 2.3 |
|
Wheels |
Custom Spank 359 SE Build |
|
Tires |
Maxxis Minion DHF 2.5 / Dissector 2.4 |
|
Seatpost |
SDG Tellis |
|
Saddle |
Canfield SDG |
|
Bar |
e*thirteen |
|
Stem |
e*thirteen Base Stem |
|
Seatclamp |
Canfield |
FEATURES
• 29” / 27.5” Downhill/Freeride
• 7005 aluminum with CNC links
• Patented Canfield Balance Formula™ Suspension
• 203mm/190mm travel
• Internal Cable Routing w/ Interchangeable Ports
• Custom CBF Chainstay Protector
• 1.5 headtube
• 20mm pivot bearings
• Replaceable rear derailleur hanger, spare hanger included
FRAME SPECS
• Shock Specs: Metric: 250mm x 70mm (203mm), (20mmX8mm/40mmX8mm hardware)
• Recommend fork length: 200mm
• Headset: 49.6mm upper/lower
• Front derailleur: Not available
• Max. chainring size: 34t (36t w/ driveside spacer)
• Bottom bracket: 83mm, threaded
• Crank Length: 165mm
• Seatpost: 30.9mm (150/MD, 170/LG)
• Seatpost clamp: 35mm
• Rear dropouts: 150mm x 12mm, Canfield axle included
• 20mm pivot bearings
• ISCG 05
• Brake mount: IS 160mm
• Maximum seatpost insertion: 230mm(M), 240mm(L)
GEOMETRY
|
Size |
Medium |
Large |
|
Top Tube Length (Effective) |
600mm |
629mm |
|
Reach |
450mm |
475mm |
|
Stack |
629mm |
638mm |
|
Standover Height |
689mm |
698mm |
|
Seat Tube Length |
415mm |
425mm |
|
Wheel Base |
1260.5mm |
1290mm |
|
Head Tube Angle* |
63° |
63° |
|
Seat Tube Angle (Effective) |
76° |
76° |
|
Seat Tube Angle (Actual) |
67.8° |
67.8° |
|
Chainstay Length |
440mm |
440mm |
|
Bottom Bracket Drop |
22mm |
22mm |
|
Bottom Bracket Height (Approximate)** |
356.5mm |
356.5mm |
|
Head Tube length |
115mmm |
125mm |
Geo based on 29” wheels and 601mm axle-to-crown fork
*Öhlins DH fork has 620mm axle-to-crown w/ 62.2 HA
*180/190mm fork w/ 592mm axle-to-crown results in 63.5 HA
**(27.5" wheels result in 337.8mm bb height)
|
SIZE
|
Medium
|
Large
|
|
RIDER HEIGHT
|
5'5"-5'11"
|
5'9"-6'3"
|
Photos for illustration purposes only. Final component spec may vary based on availability.
